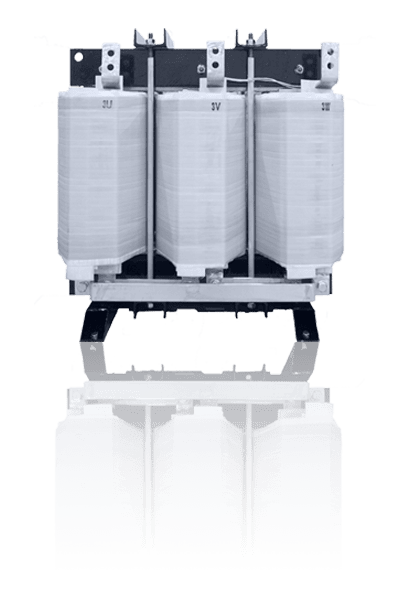

Marine Transformer

Marine transformer is an isolation transformer which is used commonly in marine industries. Can be design with custom specification in term of inrush, efficiency, etc based on marine standard and certification.

Specifications

Standard Compliance

  • IEC 60076
  • EN 61558

Certifications

  • CE
  • BV
  • ABS

Primary/Secondary Voltage Range

  • Up to 1000V

Capacity

  • Up to 2000KVA

Winding Material

  • Aluminium Foil
  • Copper Foil
  • Enameled/Nomex insulation Aluminium Wire
  • Enameled/Nomex insulation Copper Wire

Silicon Steel

  • Non Grained Oriented Silicon Steel (NGO)
  • Grained Oriented Silicon Steel (GO)

Varnish

  • High grade polyester varnish

Insulation Class

  • Based on IEC 60085 Insulation Thermal Class
  • Class Y (90°)
  • Class A (105°)
  • Class E (120°)
  • Class B (130°)
  • Class F (155°)
  • Class H (180°)
  • Class N (200°)

Cooling

  • Air Natural Cooling (AN)
  • Air Force Cooling (AF)

Ambient Temperature

  • Maximum ambient temperature 40°C
  • Up on customer request

Metal Enclosure Protection Class

  • Standard enclosure IP20
  • Up to enclosure IP43
