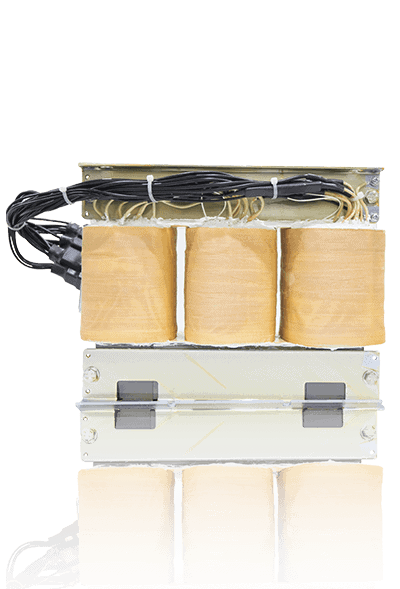

Drive Isolation Transformer

Drive Isolation Transformers are designed for SCR (Silicon Control Rectifier) variable speed motor drive applications where a transformer is needed to magnetically isolate the incoming line from the motor drive. The transformer must also provide a voltage change to match the required voltage of the SCR Drive. Standard designs are delta primary and wye secondary to match the common power sources required in most three phase rectifier circuits.

Specifications

Standard Compliance

  • IEC 60076
  • EN 61558

Certifications

  • CE

Primary/Secondary Voltage Range

  • Up to 1000V

Capacity

  • Up to 2000KVA

Winding Material

  • Aluminium Foil
  • Copper Foil
  • Enameled/Nomex insulation Aluminium Wire
  • Enameled/Nomex insulation Copper Wire

Silicon Steel

  • Non Grained Oriented Silicon Steel (NGO)
  • Grained Oriented Silicon Steel (GO)

Varnish

  • High grade polyester varnish

Insulation Class

  • Based on IEC 60085 Insulation Thermal Class
  • Class Y (90°)
  • Class A (105°)
  • Class E (120°)
  • Class B (130°)
  • Class F (155°)
  • Class H (180°)
  • Class N (200°)

Cooling

  • Air Natural Cooling (AN)
  • Air Force Cooling (AF)

Ambient Temperature

  • Maximum ambient temperature 40°C
  • Up on customer request

Metal Enclosure Protection Class

  • Standard enclosure IP20
  • Up to enclosure IP43
