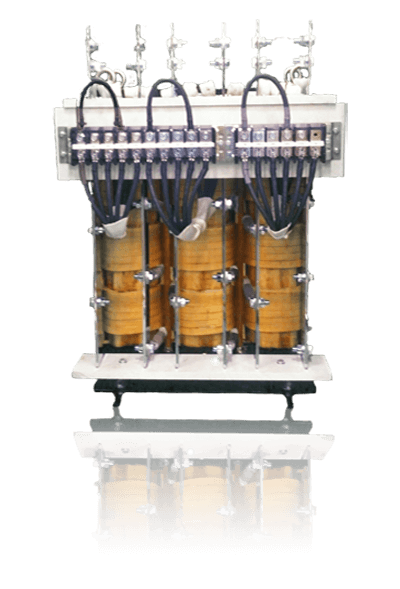

High Efficiency Transformer
High Efficiency transformer is an isolation transformer which is used commonly in industries, oil and gas, and power perfactor. Have control high efficiency more than 97%
- K Factor Transformer
- Low Inrush Transformer
Specifications
Standard Compliance
- IEC 60076
- EN 61558
Certifications
- CE
Primary/Secondary Voltage Range
- Up to 1000V
Capacity
- Up to 2000KVA
Winding Material
- Aluminium Foil
- Copper Foil
- Enameled/Nomex insulation Aluminium Wire
- Enameled/Nomex insulation Copper Wire
Silicon Steel
- Non Grained Oriented Silicon Steel (NGO)
- Grained Oriented Silicon Steel (GO)
Varnish
- High grade polyester varnish
Insulation Class
- Based on IEC 60085 Insulation Thermal Class
- Class Y (90°)
- Class A (105°)
- Class E (120°)
- Class B (130°)
- Class F (155°)
- Class H (180°)
- Class N (200°)
Cooling
- Air Natural Cooling (AN)
- Air Force Cooling (AF)
Ambient Temperature
- Maximum ambient temperature 40°C
- Up on customer request
Metal Enclosure Protection Class
- Standard enclosure IP20
- Up to enclosure IP43
